Research Paper // Energy Archive
A source-linked investigation of Tesla's radiant-energy apparatus, the changing meaning of aether, quantum-vacuum experiments, and the environmental gradients that can actually be measured and harvested.
Abstract // Version 2.0 // August 2026
Does space supply usable energy to a passive collector, or is the collector converting a known environmental input? Historical and modern records show four subjects frequently blended under the word aether. Separating them resolves most of the confusion.
Concept Map
The same vocabulary is often used for models with very different definitions, predictions, and experimental status.
A proposed mechanical medium through which light waves propagated, often imagined as stationary space-filling matter.
The expected terrestrial aether wind was not observed in the Michelson-Morley experiment. Modern electromagnetism does not require this medium.Einstein reused the word in 1920 for the physical properties of spacetime in general relativity, without assigning it mechanical parts or motion.
This is a field-and-geometry concept, not a material fluid and not a proposed electrical fuel.The lowest-energy state of quantum fields. It has measurable structure, including shifts, correlations, and boundary-dependent forces.
Measurable vacuum effects are real. A cyclic device delivering net work from an equilibrium vacuum has not been demonstrated.Conversion of energy already carried by light, RF transmission, heat flow, humidity gradients, motion, or atmospheric charge.
Demonstrated in laboratories and products, but power density, intermittency, conversion losses, and source depletion still apply.Modern Aether-Test Laboratory
Modern experiments replace long interferometer arms with stable optical or microwave resonators. As Earth rotates, any directional change in light speed would appear as a periodic beat-frequency shift.
Fractional frequency sensitivity reported by the 2015 terrestrial cavity test.
No modern record below established statistically significant photon-sector Lorentz violation.
These results constrain preferred-direction models; they do not prove that physical vacuum fields are absent.
Multiple orientations and measurements in Cleveland
Classical orbital aether-wind expectation
The observed displacement was far below the predicted stationary-aether signal.
Michelson-Morley paperEarth's rotation used to change cavity orientation
Standard-Model Extension parameters down to 10⁻¹⁵
No significant anisotropy was established; limits improved earlier tests by about two orders of magnitude.
Physical Review LettersOne year of continuously rotating frequency comparison data
Δν/ν = (9.2 ± 10.7) × 10⁻¹⁹ at 95% confidence
No statistically significant Lorentz-symmetry violation in the photon sector was observed.
Nature Communications119 valid days on a precision rotating air-bearing table
Eight Lorentz-violation parameters at 10⁻¹⁷ precision
The experiment improved photon-sector constraints while quantifying magnetic, thermal, tilt, and rotation systematics.

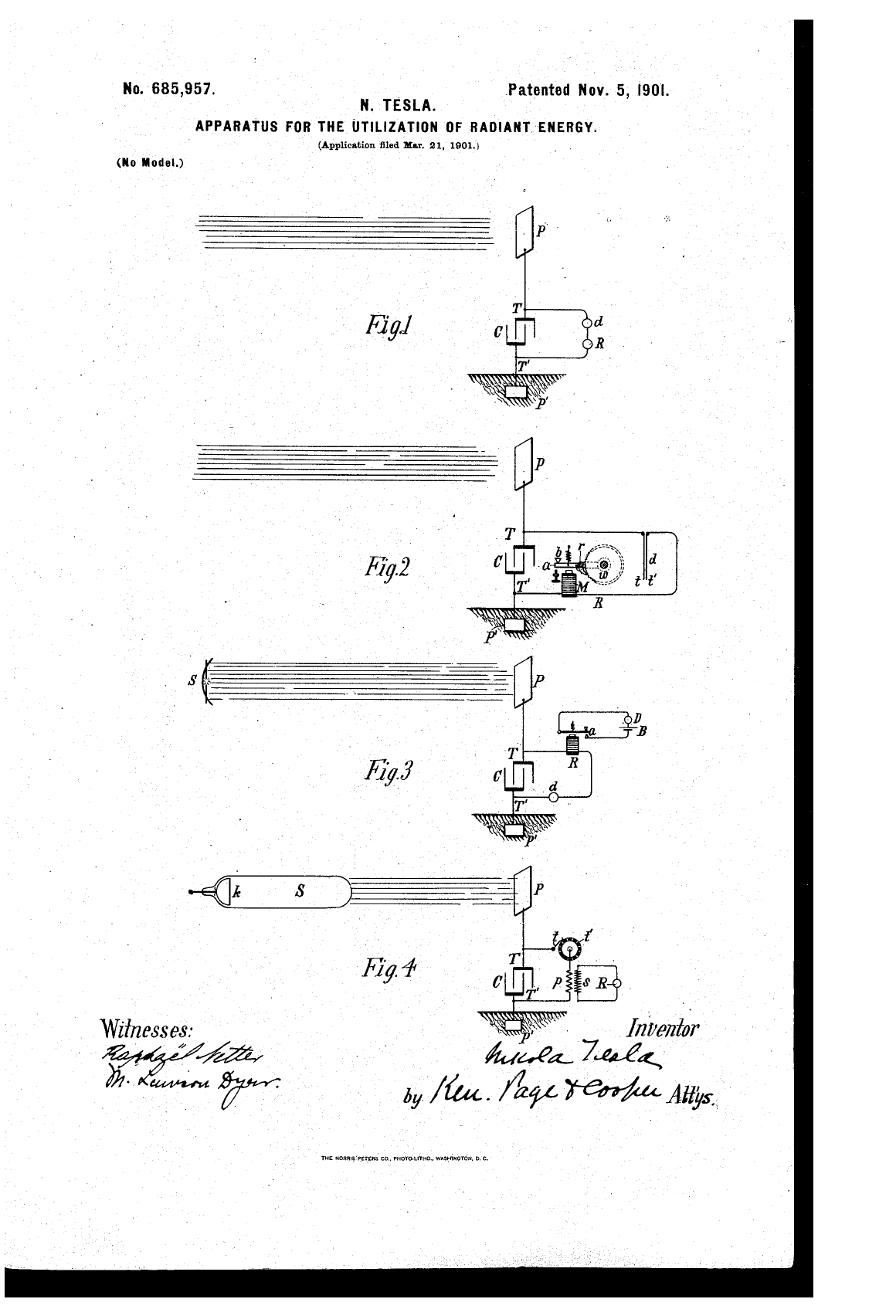

Physics Letters ATesla File // US 685,957
The 1901 patent describes a charge collector. Its stated source is incident radiation or electrically charged matter, and Tesla warns that energy is supplied to the condenser at a very slow rate.
The conducting body exposed to rays or streams of radiant matter.
Primary scan rendered from the United States patent record. The handwritten library annotation on 685,958 is part of that scan, not Tesla's patent specification.
Tesla states that received energy is approximately proportional to exposed plate area and describes artificial X-ray and arc sources in later figures.
The document supplies no calibrated watts, efficiency curve, environmental controls, or complete input-output balance.
It is historically important ambient-radiation collection, not a demonstrated machine that creates energy or removes net work from an undefined medium.
Interactive Power Comparison
Change units without changing the underlying measurements. The chart distinguishes environmental inputs, measured electrical output, derived estimates, and mechanisms with no comparable power value.
Reference-scale peak irradiance at ground level, before conversion losses.
Clear-night result from a photovoltaic surface coupled to a thermoelectric generator.
A reported 2.75 µW/cm² result. It is not a universal ambient-RF level.
Converted from 1.3 µW/cm²; electrode redox chemistry contributes and current decays.
E × J × 1 m using about 100 V/m and 2 pA/m². This is not measured load output.
The patent gives no calibrated output-power measurement.
Force was measured; continuous net electrical power was not.
Bar length uses a logarithmic scale so the atmospheric estimate and solar irradiance can appear in one view. Inputs, peak outputs, and derived estimates are deliberately labeled because they are not interchangeable performance metrics.
Evidence Timeline
Each entry links to the original paper, patent, lecture, or publisher record so the language can be checked at its source.
Their interferometer did not find the expected relative motion through a stationary luminiferous aether at the predicted magnitude.
Open Original paperIn The Problem of Increasing Human Energy, Tesla's large-scale energy argument is explicitly organized around capturing and transmitting solar energy.
Open Century Magazine textUS 685,957 describes radiation or charged particles striking an insulated plate and slowly charging a condenser referenced to ground.
Open US Patent 685,957His Leiden lecture describes spacetime as possessing physical qualities while rejecting the motion and mechanical constitution assigned to older ether models.
Open Leiden lecture transcriptLamoreaux measured boundary-dependent vacuum stress with a torsion pendulum and reported agreement with theory at the 5% level.
Open Physical Review LettersA superconducting circuit produced correlated photons while its electrical length was externally modulated above 10 GHz.
Open Nature paperHumidity and nighttime radiative-cooling devices reported continuous voltage or measured output power from identified environmental and chemical gradients.
Open Nature Communications studyMeasured Results
Voltage without current is not power, and a force without a repeatable cycle is not a generator. The ledger keeps the input reservoir beside every reported result.
| Mechanism | Recorded result | Identifiable input | Boundary / limitation |
|---|---|---|---|
| Tesla radiant collectorEXPEXPERIMENTAL | No calibrated output power stated in the patent | Ultraviolet, cathodic, Roentgen rays, or charged streams incident on a plate | A patent documents apparatus and claims; it is not a controlled performance report or evidence of over-unity operation. Tesla patent |
| Fair-weather atmospheric fieldDOCDOCUMENTED | About 100 V/m field; downward current of a few pA/m² | Global electric circuit maintained mainly by thunderstorms and electrified clouds | The voltage gradient sounds large, but the available current density is extraordinarily small and varies with weather and aerosols. JGR Atmospheres review |
| Humidity-enabled nanofluidic diodeDOCDOCUMENTED | 1.3 µW/cm² peak; 0.8-1.1 V sustained for at least one month | Adsorbed water, ion transport, oxygen, and electrode redox chemistry | Short-circuit current declined from 1,500 nA to 100 nA after one month; electrode chemistry contributed to output. Nature Communications |
| Nighttime radiative coolingDOCDOCUMENTED | 50 mW/m² and 100 mV open-circuit under a clear night sky | Heat flow from a photovoltaic surface toward the cold sky through a thermoelectric generator | It requires a temperature difference and sky access; the result is not energy drawn from an equilibrium vacuum. Applied Physics Letters |
| Ambient RF rectennaDOCDOCUMENTED | Site-dependent; power must be derived from a measured field and loaded rectifier curve | Broadcast, cellular, Wi-Fi, or dedicated transmitter radiation | Ambient RF is usually sparse and variable. Antenna aperture, frequency, polarization, matching, and conversion threshold govern output. IEEE measurement model |
| Casimir systemsEXPEXPERIMENTAL | Force observed; no self-running net electrical power reported | Boundary configuration; dynamical experiments add an external high-frequency pump | A force or emitted photon is not automatically a fuel source. Restoring the apparatus and driving boundaries must be included in the energy balance. Dynamical Casimir experiment |
Claim Audit Matrix
Filter the terms that are commonly blended into aether discussions. Every claim needs a defined quantity, a prediction, an observed record, and a test capable of returning a null result.
Quantum Boundary
The static Casimir experiment measured a force. The dynamical Casimir experiment produced photons while a superconducting boundary was driven above 10 GHz. In both cases, a complete energy analysis includes the work needed to position, restore, or modulate the system.
A positive meter reading is not sufficient if any sustaining input is omitted. Ground states are treated as completely passive in the thermodynamic result of Pusz and Woronowicz.
Open the passivity paperModdel and colleagues reported increased differential conductance and anomalous current/voltage offsets in metal-insulator-metal devices joined to Casimir cavities. The result is a documented device observation and interpretation, but the paper does not report a self-sustaining generator with a complete positive net energy balance.
Open Physical Review Research paperResearch Video Library
Each video is paired with a primary publication or publisher record. A video can explain a method or viewpoint; it does not replace the measurements in the cited paper.
A university-level reconstruction of the interferometer, the expected fringe shift, and the historical null result.
The underlying thermal-radiation mechanism behind harvesting a temperature difference between a terrestrial surface and the cold sky.
A researcher working on Casimir-cavity devices discusses how unconventional energy claims should be tested. Included as a research viewpoint, not proof of net vacuum power.
Open Replication Project // AR-001
The purpose is not to prove or dismiss the patent in advance. It is to identify which measured inputs account for charge collected by an elevated insulated plate.
Measure simultaneously against shielded, isolated, and dummy-channel controls.
A voltage spike or open-circuit charge is an observation, not yet a positive energy result.
Negative and failed results remain publishable data.
No X-ray tubes, radioactive sources, lightning collection, exposed high voltage, or energized elevated structures are part of this baseline.
Replication Protocol
The protocol is intentionally capable of disproving the device. That is what makes a positive result useful.
State whether the input is radiation, heat, humidity, motion, chemistry, atmospheric charge, or an explicitly defined field state.
Report voltage and current simultaneously across calibrated loads. Open-circuit voltage alone is not power.
Include pumps, oscillators, grounding currents, batteries, heaters, cooling, control electronics, and stored startup energy.
Shield RF and light, equalize temperature and humidity, reverse orientation, use dummy loads, and test disconnected grounds.
Compare time-integrated output with all input energy and uncertainty over a duration long enough to expose battery-like depletion.
Publish schematics, parts, raw time-series data, calibration records, environmental logs, and failure conditions.
Open Data Station
Enter a loaded measurement, calculate current, power, energy, and collector-area density, then import raw CSV or JSON for local schema validation. Nothing is transmitted automatically.
Forum Handoff // AR-001
The companion forum thread separates historical interpretation, apparatus design, raw datasets, review comments, and independent replication reports. Generated packages enter as unreviewed submissions until a moderator checks the required fields.
Conclusion
Tesla's radiant-energy patent deserves study as an early collector concept. Quantum vacuum physics deserves study because its effects are measurable. Ambient energy deserves engineering because useful power can be harvested from real gradients.
None of those facts verifies an inexhaustible aether battery. The next credible breakthrough will identify its reservoir, close its energy balance, survive null controls, and replicate outside the inventor's laboratory.
Primary Sources
Publisher and patent links remain the canonical record. The PDF and BibTeX files package this page for offline study and citation.
Research Updates
Added modern Lorentz-isotropy tests, logarithmic power comparison, original patent plates, claim audit, research videos, replication project, open-data tools, citation exports, forum handoff, and revision tracking.
Published the historical concept map, Tesla patent interpretation, ambient-harvesting ledger, quantum-vacuum boundary, replication protocol, and ten-source bibliography.
